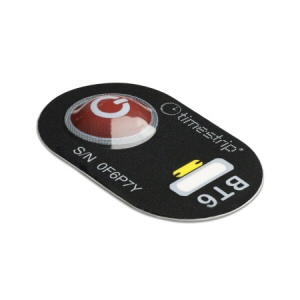

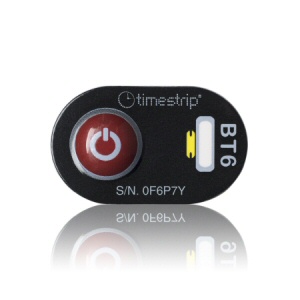

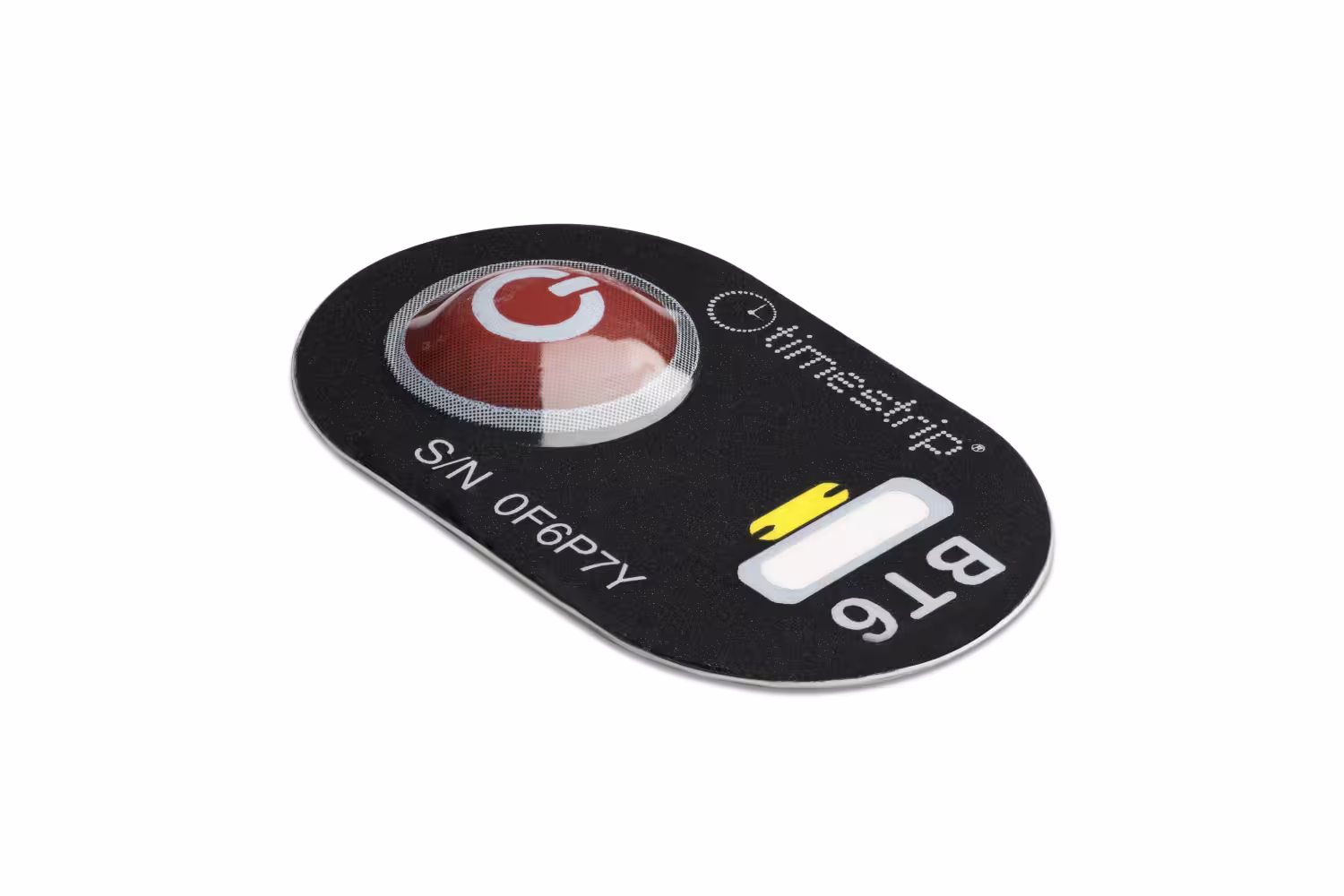

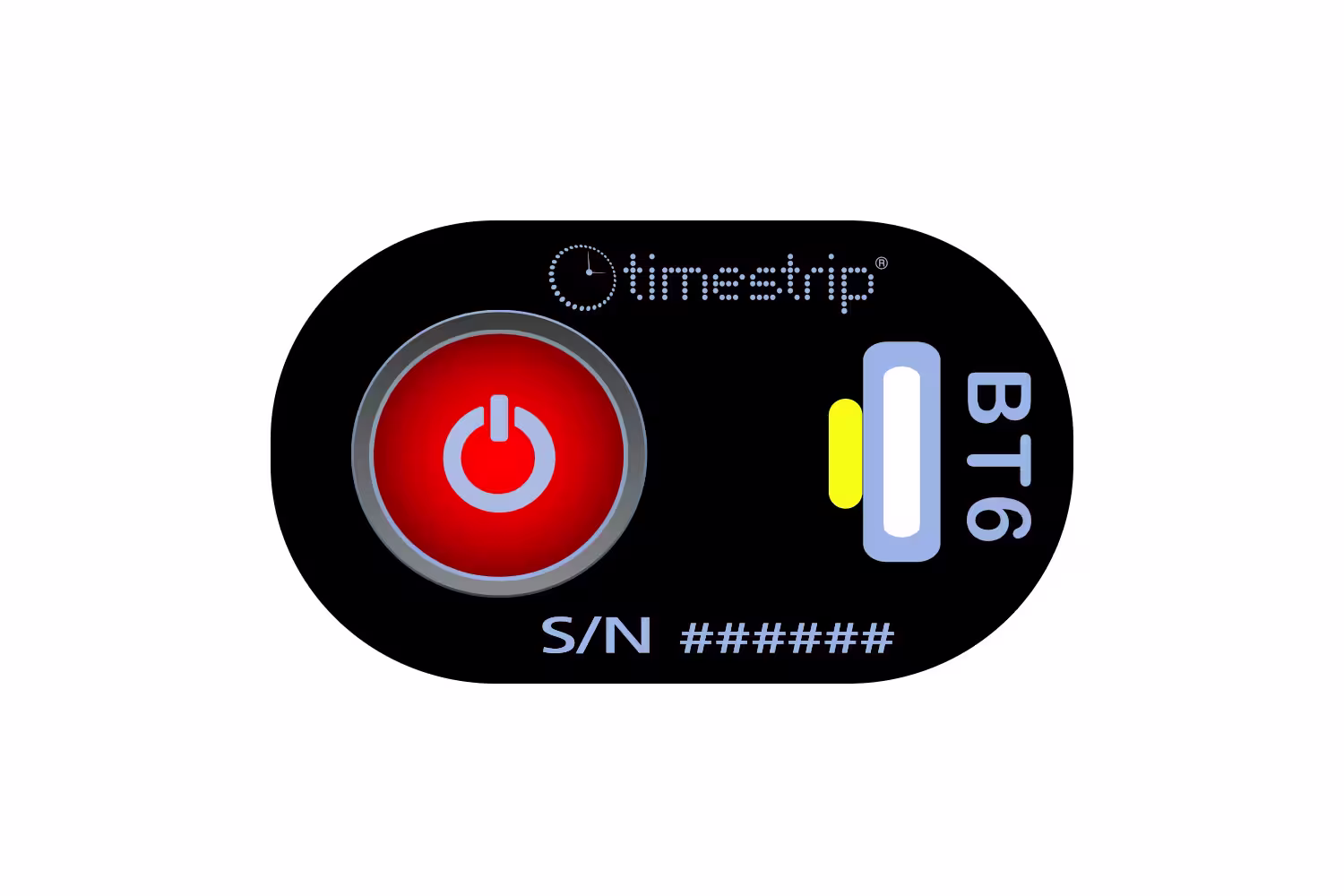

Blood Temp 6 Temperature Breach Indicator

«     »

Product code: TB006

Tel: +44 (0)1582 501980 (Sales)

Email: sales@helapet.co.uk

Share:

Description

The Blood Temp 6 is a temperature breach indicator that can be used by Blood Banks and Transfusion Services to maintain quality control in the transportation of red blood cells.

Supporting critical decision making for the re-issue of blood bags that have been removed from controlled storage, Blood Temp 6 provides improved management of blood bags within the cold chain. With simple activation and application onto a blood bag, the Blood Temp 6 will immediately begin to sense the blood temperature. Any breach above 6°C will be indicated on the window, irreversibly changing colour from white to blue.

Cost effective and simple to use, the Blood Temp 6 can be activated in ambient environments with no pre-conditioning required. Easy-to-apply, the medical grade adhesive backing is formulated to adhere to cold/moist bags.

A self-contained unit with no additional consumables required. The Blood Temp 6 is manufactured using non-toxic, latex and PVC free materials.

Blood Temp 6 provides accurate and auditable proof that blood has been stored, transported and re-issued according to regulatory requirements which otherwise could result in blood bags being needlessly discarded.

Specification

MaterialsPolymeric assembly multilayer and aluminium-plastic laminate
Temperature threshold+6°C/43°F
Activation temperature+6°C/43°F (no pre-conditioning required)
Temperature accuracy+/- 0.5°C accuracy
Storage recommendations+22°C / 72°F at 20-80% RH
ToxicityNon-toxic, latex and PVC free
Adhesive materialMedical grade permanent tape
Dimensions (d x w x h)19mm x 32mm x 0.5mm
Packaging100 individual pieces in one cardboard box
Shelf life2 years from date of manufacture



Part CodeProduct NameSizeSterilitySales Unit
TB006Timestrip® Blood Temp 6°C19mm x 32mmnon-sterile100 pcs/pck

Features and Benefits

  • Ambient storage, no pre-conditioning
  • 'On', yellow window shows immediate activation after blister push
  • Irreversible indication of temperature breach
  • Allows for full QA auditing and unit traceability
  • Splash resistant
  • Individual serial number and lot traceability
