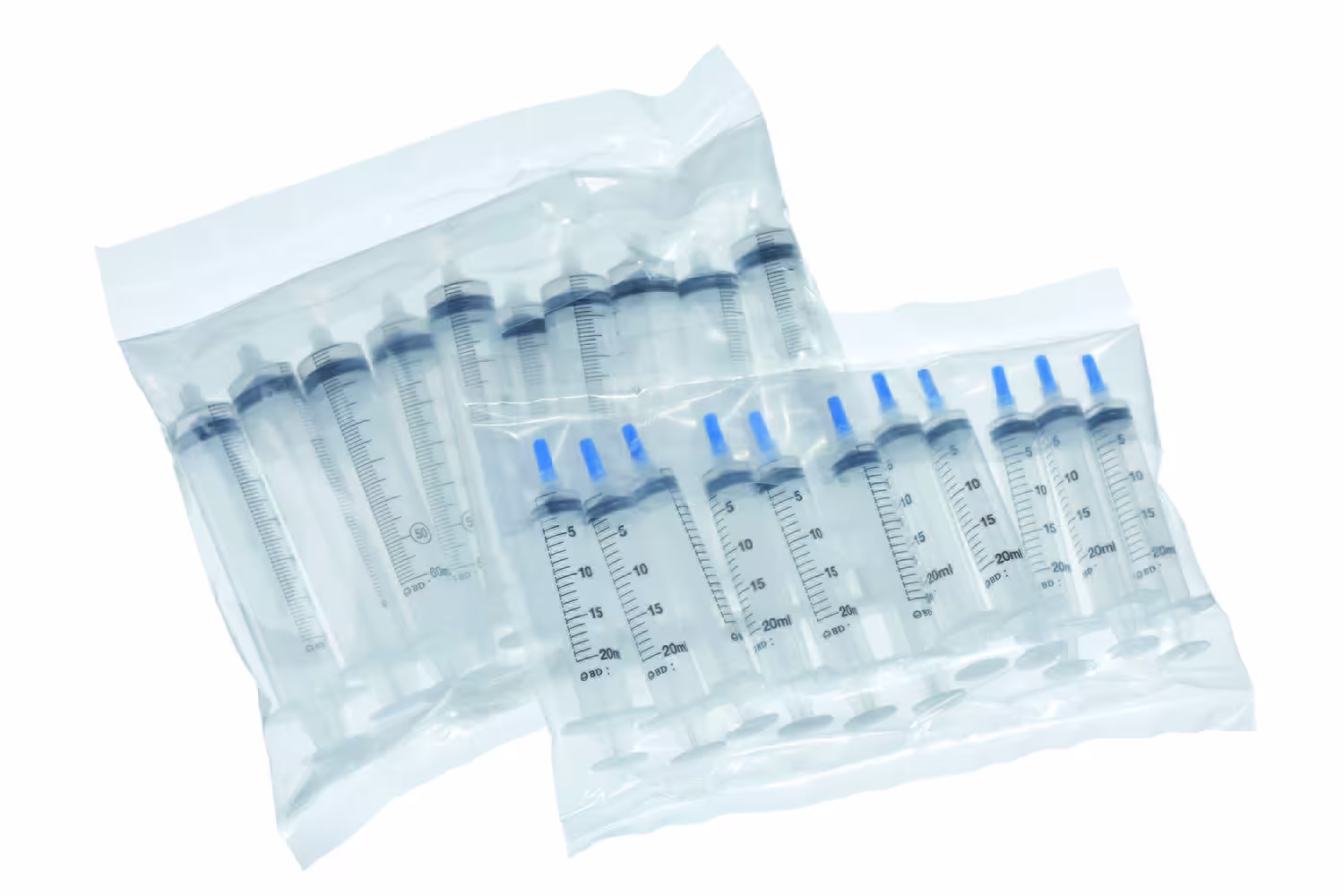

PharmaPack® Sterile Multi-Pack Syringes
Description
Use PharmaPack® to safely and conveniently transfer several sterile syringes in a single bag, reducing time, energy, packaging waste and risk of contamination. Helapet offer a comprehensive range of quality prepared CE marked luer-lock and luer-slip syringes, available in several sizes and packaging configurations to suit specific production requirements.
Designed for use in aseptic manufacturing units, PharmaPack® supports the latest disinfection and aseptic transfer protocols with multi-bag packaging using low-lint materials. All packs are terminally sterilised for use in high grade cleanroom environments and undergo regular sample testing for added customer assurance.
PharmaPack® sterile BD luer lock syringes in combination with selected Helapet syringe caps are microbiologically and structurally integrity tested in accordance with the NHS Method Document: Protocols for the Integrity Testing of Devices*.
Specification
Technical Data
| Syringe Sizes | 1ml, 3ml, 5ml, 10ml, 20ml, 30ml, 50ml | |
|---|---|---|
| Packaging Material | ETO sterilisation | Flexopeel® header pouches |
| Gamma sterilisation | Clear polyethylene bags | |
| Packaging Specifications | Sealed double and triple bagged formats | |
| Syringes per pack | 5s, 10s, 25s, 50s | |
| Syringe Connections | Luer Lock; Luer Slip | |
| Capping | Pre capped with high density polyethylene white vented cap or blue non-vented cap (optional) | |
| Processing | ISO Class 7 rated cleanroom | |
| Compliance | Microbiologically and structurally integrity tested in accordance with the NHS Method Document: Protocols for the Integrity Testing of Devices*; CE-Marked; ISO 13485:2012; Seal integrity tested | |
| Sterilisation | Luer Lock 20ml, 30ml, 50ml | Sterilised by Ethylene Oxide (ETO) |
| Luer Lock 1ml, 3ml, 5ml, 10ml + all triple bagged formats |
Gamma irradiated to no less than 25 kGy | |
| Luer Slip 1ml, 2ml | Sterilised by Ethylene Oxide (ETO) | |
| Shelf Life | 3 years from date of manufacture | |
*NHS Method: Protocols for the Integrity Testing of Devices; 2nd Edition, revised April 2013
Ordering Information
LUER LOCK / UNCAPPED |
|||||
Double bagged packaging |
|||||
| Part Code | Product Name | Size | Sterility | Sales Unit | |
|---|---|---|---|---|---|
| XX3101BD | PharmaPack® BD syringe (LL) | 1ml | Sterile | 50 x 10 pcs |
 |
| XX3103BD | PharmaPack® BD syringe (LL) | 3ml | Sterile | 50 x 10 pcs |
 |
| XX3203BD | PharmaPack® BD syringe (LL) | 3ml | Sterile | 20 x 25 pcs | |
| XX3503BD | PharmaPack® BD syringe (LL) | 3ml | Sterile | 10 x 50 pcs | |
| XX3105BD | PharmaPack® BD syringe (LL) | 5ml | Sterile | 40 x 10 pcs |
 |
| XX3205BD | PharmaPack® BD syringe (LL) | 5ml | Sterile | 16 x 25 pcs | |
| XX3110BD | PharmaPack® BD syringe (LL) | 10ml | Sterile | 35 x 10 pcs |
 |
| XX3120BD | PharmaPack® BD syringe (LL) | 20ml | Sterile | 10 x 10 pcs |
 |
| XX3220BD | PharmaPack® BD syringe (LL) | 20ml | Sterile | 4 x 25 pcs | |
| XX3130BD | PharmaPack® BD syringe (LL) | 30ml | Sterile | 10 x 10 pcs |
 |
| XX3230BD | PharmaPack® BD syringe (LL) | 30ml | Sterile | 4 x 25 pcs | |
| XX3150BD | PharmaPack® BD syringe (LL) | 50ml | Sterile | 5 x 10 pcs |
 |
| XX3250BD | PharmaPack® BD syringe (LL) | 50ml | Sterile | 2 x 25 pcs | |
| XX3350BD | PharmaPack® BD syringe (LL) | 50ml | Sterile | 5 x 25 pcs | |
Triple bagged packaging |
|||||
| Part Code | Product Name | Size | Sterility | Sales Unit | |
| XXTB30501BD | PharmaPack® BD syringe (LL) | 1ml | Sterile | 50 x 5 pcs |
|
| XXTB30505BD | PharmaPack® BD syringe (LL) | 5ml | Sterile | 50 x 5 pcs |
|
| XXTB30510BD | PharmaPack® BD syringe (LL) | 10ml | Sterile | 40 x 5 pcs |
|
| XXTB3130BD | PharmaPack® BD syringe (LL) | 30ml | Sterile | 8 x 10 pcs |
|
| XXTB3150BD | PharmaPack® BD syringe (LL) | 50ml | Sterile | 4 x 10 pcs |
|
LUER LOCK/ CAPPED |
|||||
Double bagged packaging |
|||||
| Part Code | Product Name | Size | Sterility | Sales Unit | |
| XX3101BDC | PharmaPack® BD syringe (LL) | 1ml | Sterile | 50 x 10 pcs |  |
| XX3103BDC | PharmaPack® BD syringe (LL) | 3ml | Sterile | 50 x 10 pcs |
 |
| XX3203BDC | PharmaPack® BD syringe (LL) | 3ml | Sterile | 20 x 25 pcs | |
| XX3105BDC | PharmaPack® BD syringe (LL) | 5ml | Sterile | 40 x 10 pcs |
 |
| XX3205BDC | PharmaPack® BD syringe (LL) | 5ml | Sterile | 16 x 25 pcs | |
| XX3110BDC | PharmaPack® BD syringe (LL) | 10ml | Sterile | 35 x 10 pcs |
 |
| XX3120BDC | PharmaPack® BD syringe (LL) | 20ml | Sterile | 10 x 10 pcs |
 |
| XX3220BDC | PharmaPack® BD syringe (LL) | 20ml | Sterile | 4 x 25 pcs | |
| XX3130BDC | PharmaPack® BD syringe (LL) | 30ml | Sterile | 10 x 10 pcs |  |
| XX3150BDC | PharmaPack® BD syringe (LL) | 50ml | Sterile | 5 x 10 pcs |
 |
| XX3250BDC | PharmaPack® BD syringe (LL) | 50ml | Sterile | 2 x 25 pcs | |
Triple bagged packaging |
|||||
| Part Code | Product Name | Size | Sterility | Sales Unit | |
| XXTB30505BDC | PharmaPack® BD syringe (LL) | 5ml | Sterile | 50 x 5 pcs |
|
| XXTB30510BDC | PharmaPack® BD syringe (LL) | 10ml | Sterile | 40 x 5 pcs |
 |
| XXTB3120BDC | PharmaPack® BD syringe (LL) | 20ml | Sterile | 8 x 10 pcs |
 |
LUER SLIP / UNCAPPED |
|||||
Double bagged packaging |
|||||
| Part Code | Product Name | Size | Sterility | Sales Unit | |
| XX3101BBLS | PharmaPack® BB syringe (LS) - green | 1ml | Sterile | 30 x 10 pcs |  |
| XX3101LS | PharmaPack® BD syringe (LS) | 1ml | Sterile | 20 x 25 pcs |  |
| XX3052BD | PharmaPack® BD syringe (LS) | 2ml | Sterile | 75 x 5 pcs |  |
Helapet Syringe CapsAvailable to purchase separately, our luer lock syringe caps are microbiologically and structurally integrity tested with our PharmaPack® sterile BD luer lock syringes, in accordance with the NHS Method Document: Protocols for the Integrity Testing of Devices |
|||||
| Part Code | Product Name | Size | Sterility | Sales Unit | |
| IV2102 | Combi-Cap Luer Lock Syringe Cap | 1ml | Sterile | 1,000 pcs/pck |  |
| IV5750R | Tamper Evident IV Syringe Cap | 1ml | Sterile | 10 x 10 pcs/pck |  |
| (Non-stock item) | PharmaPack® Integrated Blue Non-Vented Syringe Cap |  |
|||
Need something specific that you haven't found on our website, then send us your requirements online or call our office for a quote.
Downloads
Features and Benefits
- Metric syringe graduation
- Optimised pack quantities
- Double or triple bagged
- Low-lint packaging materials
- Capped option to reduce contamination risk
- Sterilised for use in Grade A environments
