Pipette Controller Inline Disc Filters

Pipette Controller Inline Disc Filters

FH4235_

Tel: +44 (0)1582 501980 (Sales)

Email: sales@helapet.co.uk

Share:

Tiffany Hussain
Account Manager - Filtration

Tiffany Hussain

07425 862413

Email me

Description

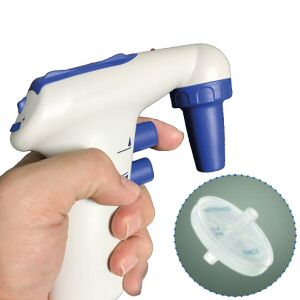

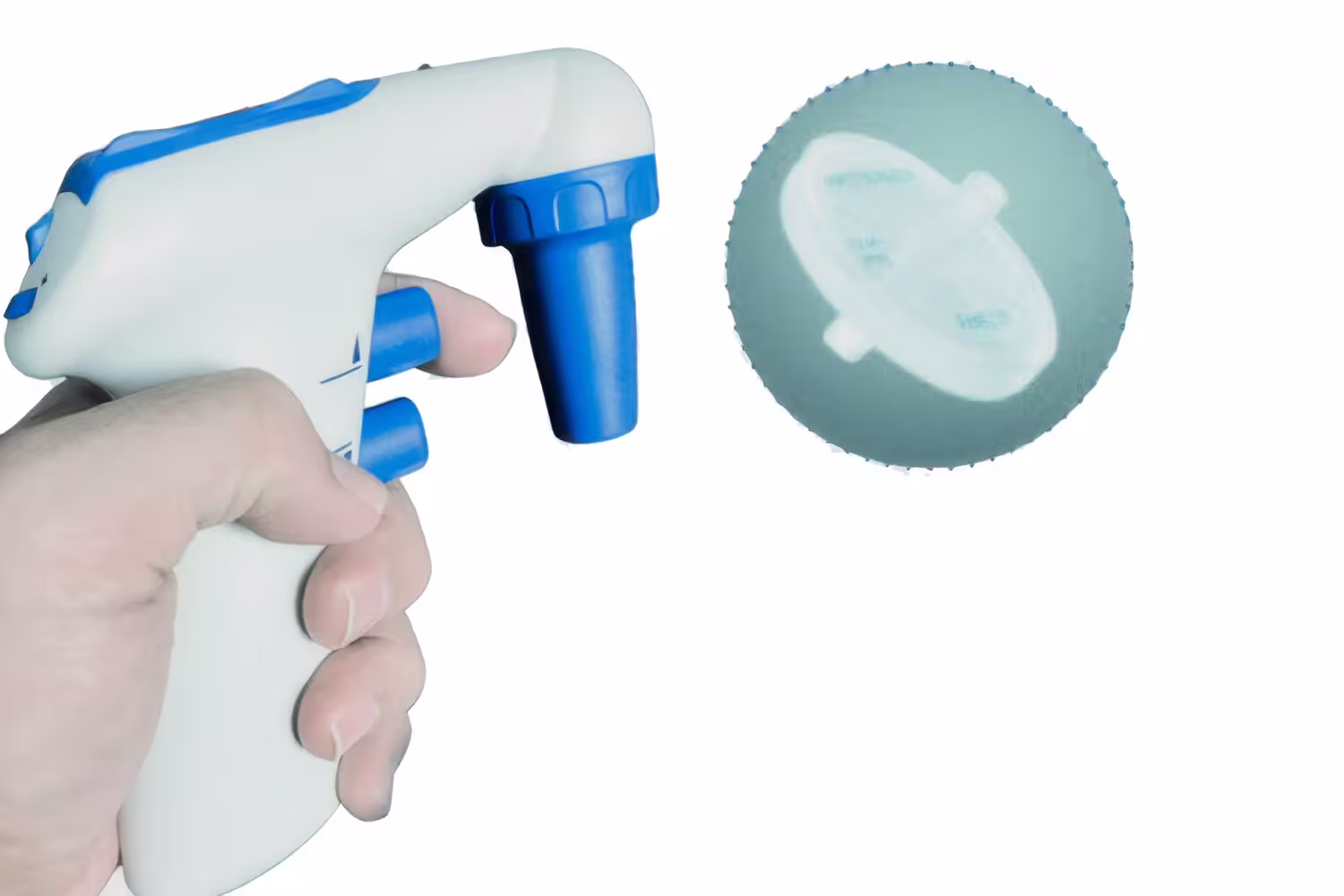

Helapet offer a range of replaceable inline membrane filters designed to universally fit inside standard pipette controllers, reducing the risk of cross contamination in controlled cleanroom environments and laboratories.

Available as standard using either a 0.2µm or 0.45µm microporous PTFE media, the hydrophobic properties protects the instrumentation from moisture. Each pipette controller filter is 24mm in diameter with male luer slip inlet and outlet connections, providing a secure fit onto the majority of manual pipette controllers.

To avoid the risk of bypass, our filters are ultrasonically welded within FDA approved polypropylene housing. All Helapet inline disc filters are integrity tested to support performance specifications and individually etched with lot numbers enabling traceability.

Customise your pipette controller disc filter

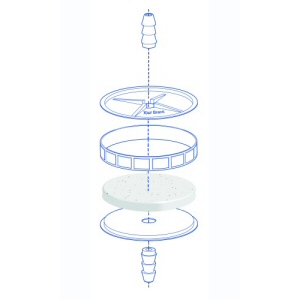

Create the ideal inline disc filter to suit your pipette controller filter or specialist filtration application using our extensive range of options. Use our Vari-Disk® service to select your filter size, filter media, inlet/outlet connections and bespoke printing to enhance your filter solution.

Visit the Filter Devices Web Site

Downloads

Specification

Housing materialBorealis® Polypropylene
Standard media usedPTFE (Polytetrafluoroethylene)
Standard micron size0.2µm / 0.45µm
Standard connector optionsInletMale luer slip
OutletMale luer slip
Filter size24mm
Filtration area4.23cm2
Maximum pressureUp to 60psi (4.14 bar)
ApplicationInstrumentation protection from moisture and particulates
TestingWater entry pressure
Flow rate
Bubble point tested
Clean pressure drop
Burst integrity test
Pressure test
Standard pack sizes25 or 50 pieces per pack
Common configurations
Product codeMediaInletOutletSizeSales Unit
FH42350.2µm PTFEMale Luer SlipMale Luer Slip24mm50 pcs/pck
FH43350.45µm PTFEMale Luer SlipMale Luer Slip24mm50 pcs/pck
