Ink-jet Inline Disc Filters

Ink-jet Inline Disc Filters

Product code: FH3597

Tel: +44 (0)1582 501980 (Sales)

Email: sales@helapet.co.uk

Share:

Tiffany Hussain
Account Manager - Filtration

Tiffany Hussain

07425 862413

Email me

Description

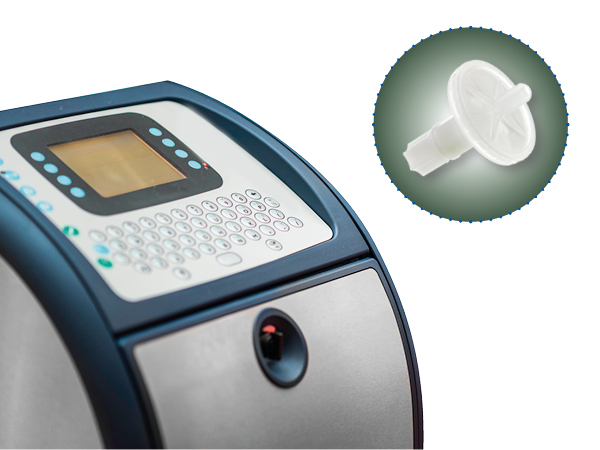

Helapet inline ink jet filters protect industrial printers against particles which could damage the printer's operation, whilst maintaining flowrates and providing an even distribution of ink.

Supporting print quality and efficiency, our replaceable ink jet filters are specifically designed as a pre-pump filter that can prevent the risk of blockage. Operating at medium to high pressures, each standard ink-jet filter is manufactured with a 40µm woven polyester (WPE) or stainless steel screen media for large particulate separation, granting a high quality finish when printed.

Customise your ink jet disc filter

Create the ideal inline disc filter to suit your ink-jet printer or any other specialist filtration application using our extensive range of customisable options. Use our Vari-Disk® service to select your filter size, filter media, inlet/outlet connections and bespoke printing to enhance your filter solution.

Visit the Filter Devices Web Site

Downloads

Specification

Housing materialBorealis® Polypropylene
Standard media usedWoven Polyester (WPE)
Standard micron size40µm
Standard connector optionsInlet1/8" National Pipe Thread + 6mm JACO Connector
Outlet1/8" National Pipe Thread + 6mm JACO Connector
Filter size50mm
Filtration area17.35cm2
Maximum pressureUp to 50psi (3.44 bar)
ApplicationInk jet printers
TestingWater entry pressure
Flow rate
Bubble point tested
Clean pressure drop
Burst integrity test
Pressure test
Standard pack size20 or 25pieces per pack
Common configurations
Product codeMediaInletOutletSizeSales Unit
FH359740µm WPE1/8" NPT1/8" NPT + Jaco connector50mm20 pcs/pck

Features and Benefits
